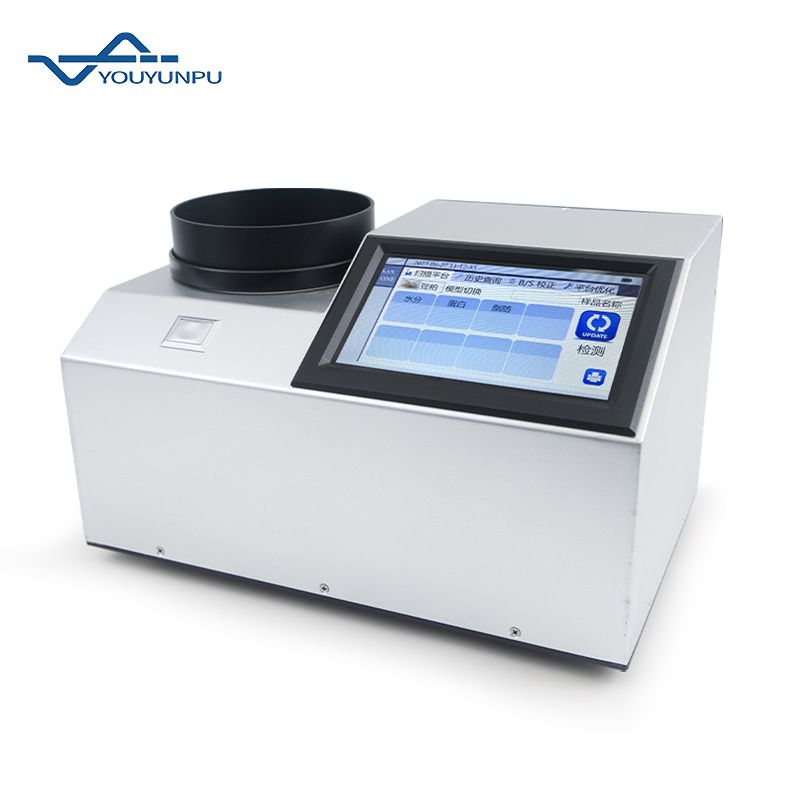

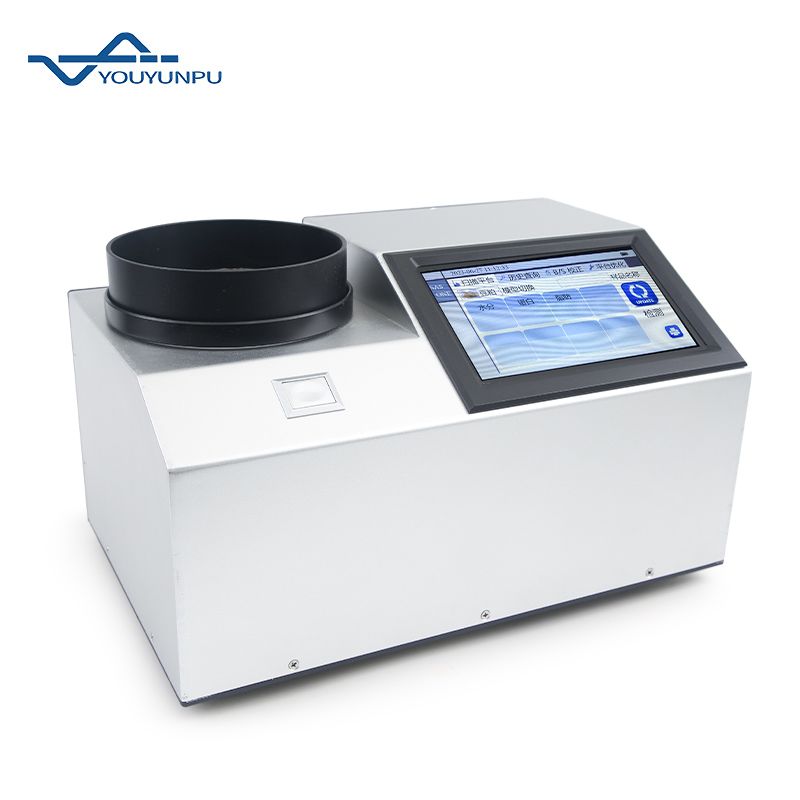

Near-Infrared Grain Analyzer

I. Product Introduction

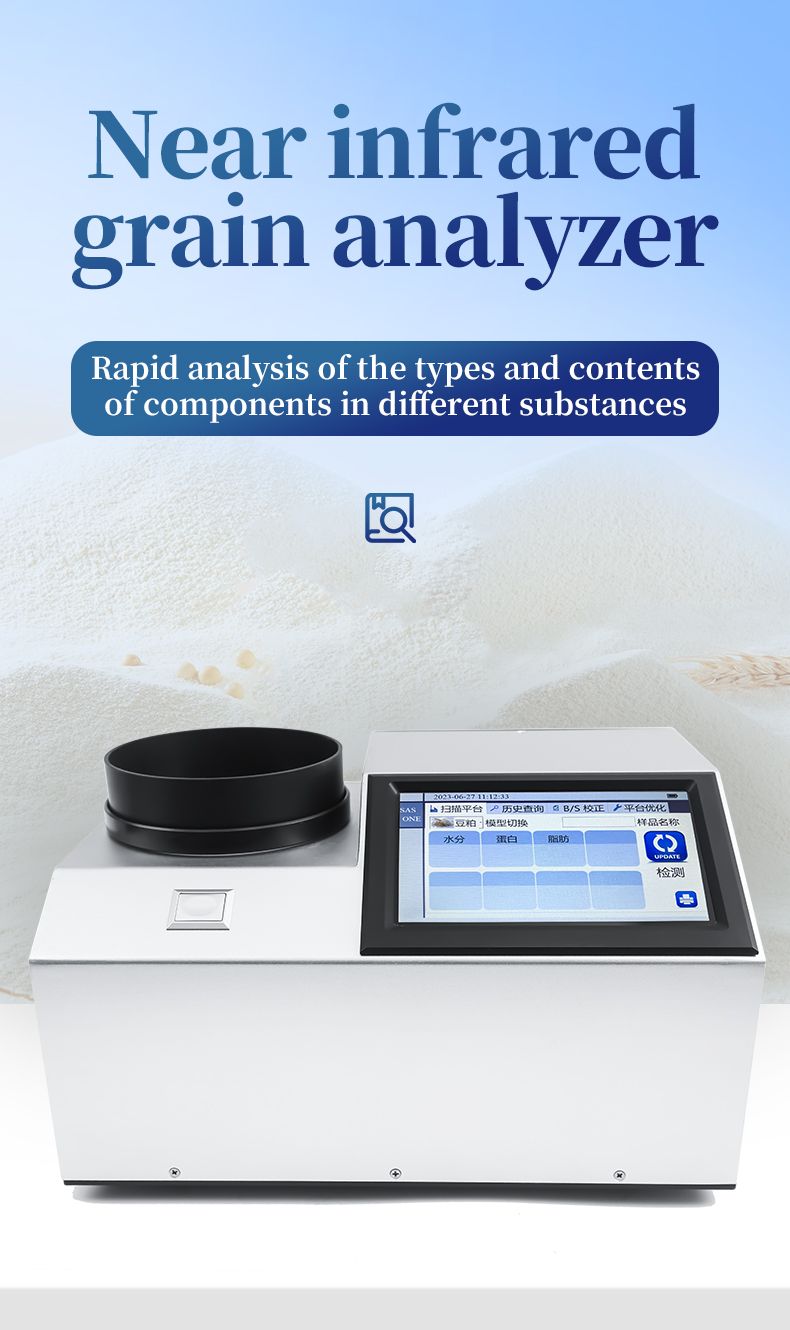

This instrument is a near-infrared (NIR) spectroscopy analyzer. It can quickly analyze the types and contents of components in different substances (such as protein, moisture, fat, fiber, ash, etc.) based on the spectra generated when the sample is irradiated by near-infrared light. Models can be added according to customer requirements.

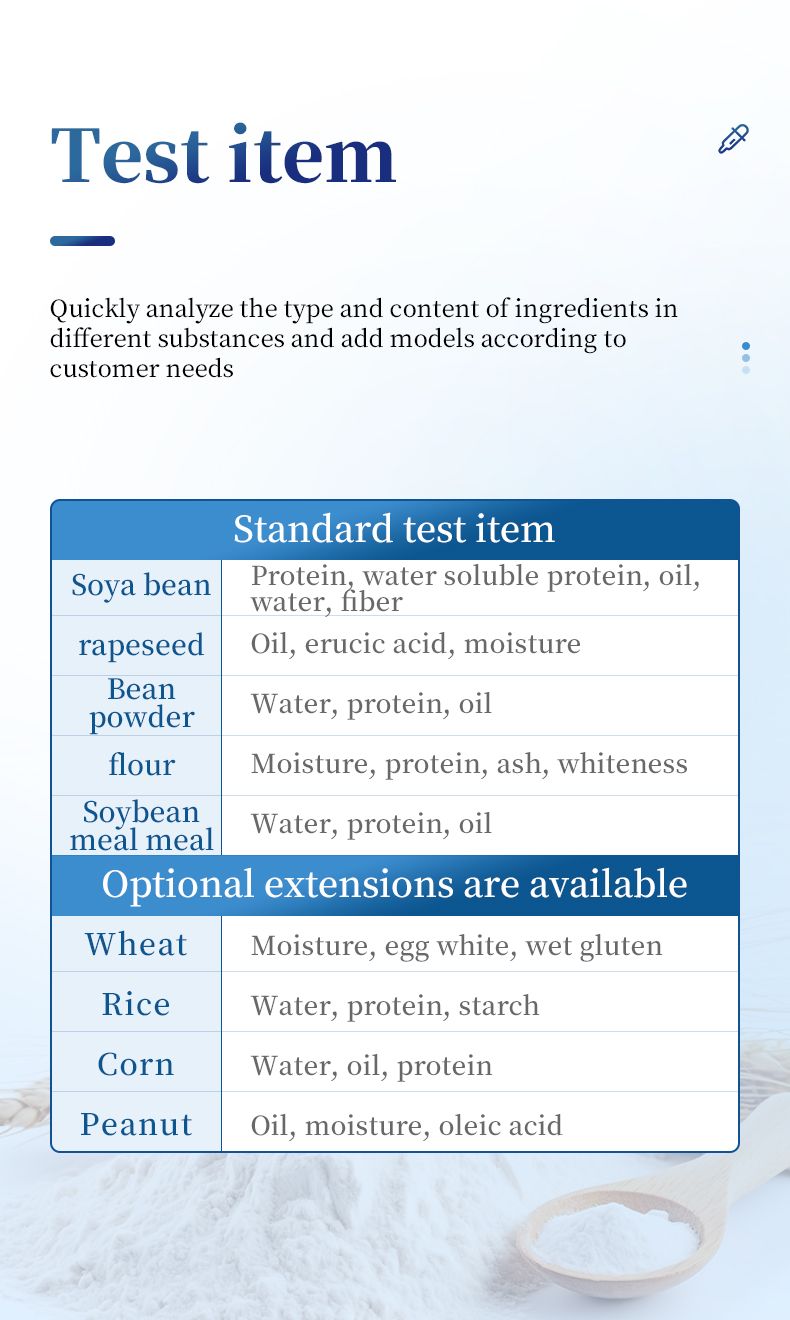

II. Standard Testing Items

Soybeans: Protein, soluble protein, fat, moisture, fiber

Rapeseed: Fat, erucic acid, moisture

Soy flour: Moisture, protein, fat

Flour: Moisture, protein, ash, whiteness

Soybean meal: Moisture, protein, fat

Optional Extended Items:

Wheat: Moisture, protein, wet gluten

Rice: Moisture, protein, starch

Corn: Moisture, fat, protein

Peanuts: Fat, moisture, oleic acid

III. Product Features

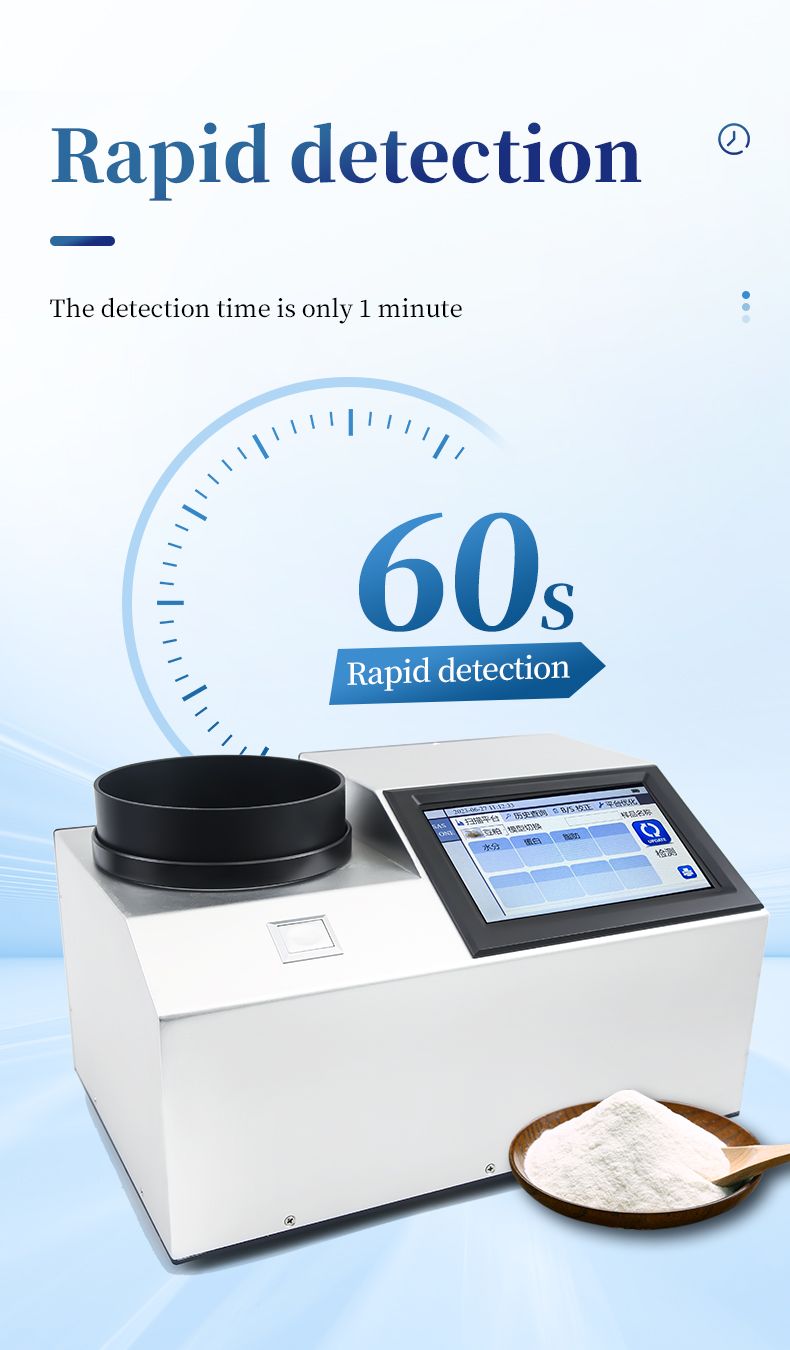

1.Fast: Detection takes only 1 minute

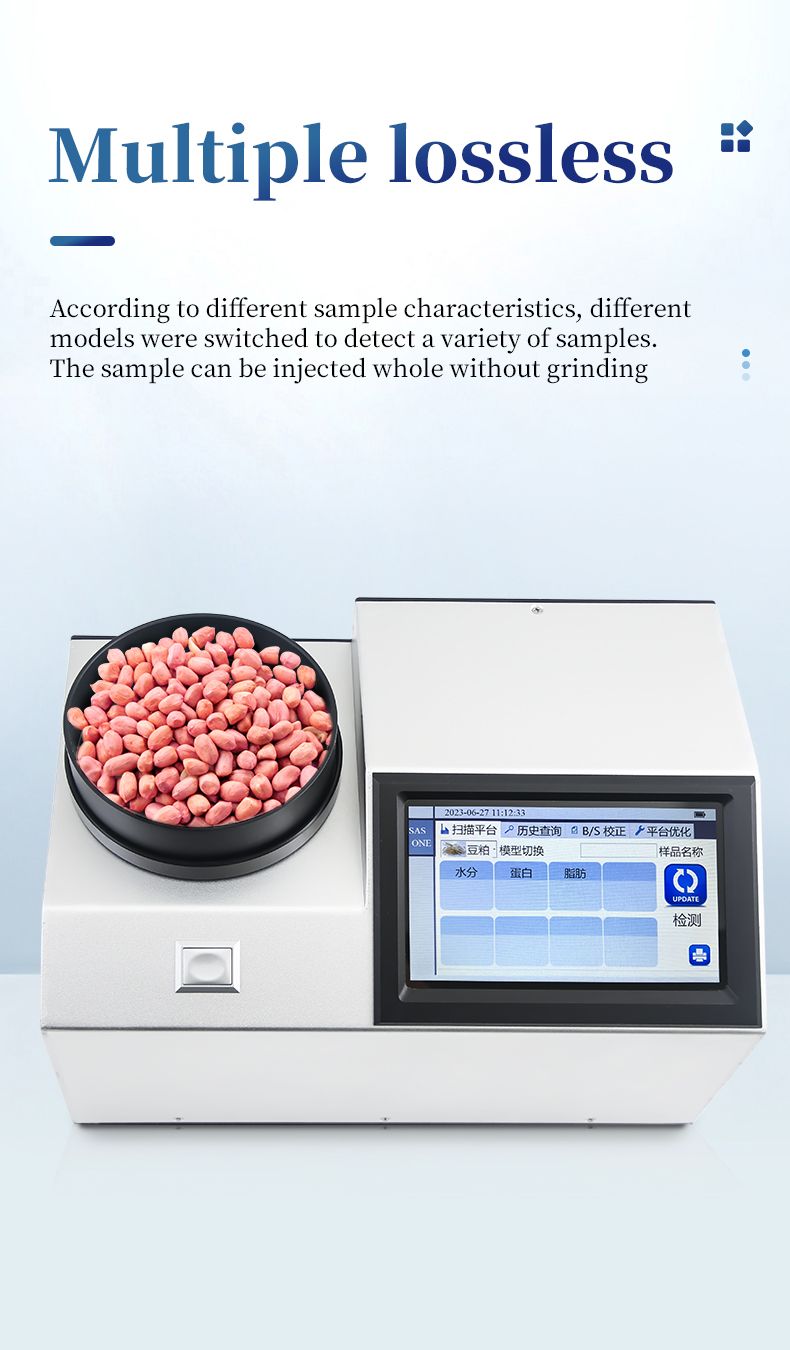

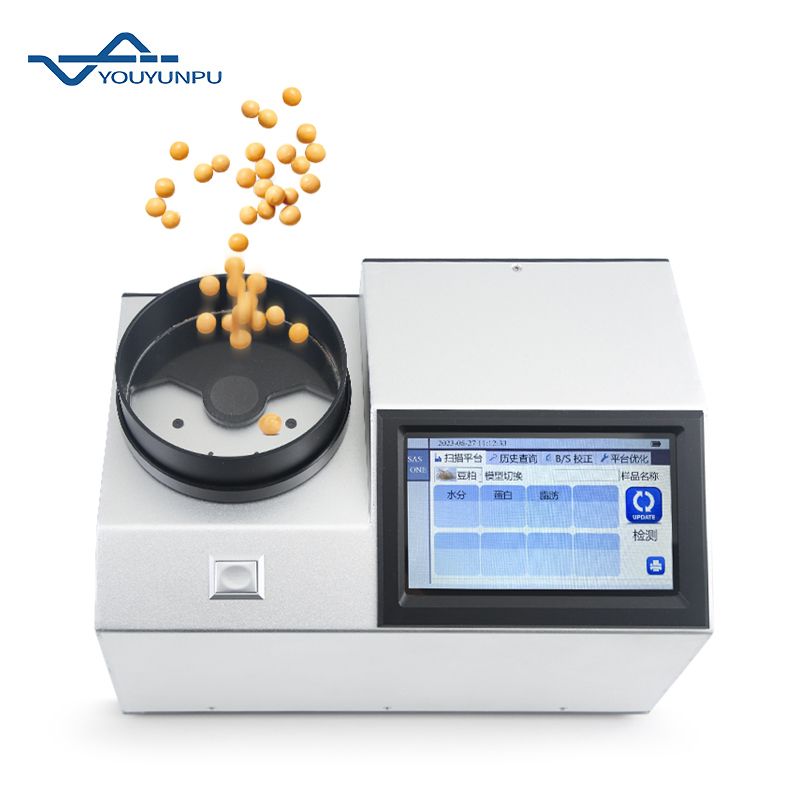

2.Non-destructive: Samples do not require grinding; whole grains can be tested

3.Versatile: The instrument uses multiple algorithms in combination, allowing different models to be switched for testing various sample types

4.Flexible Power Supply: Supports both AC and DC power

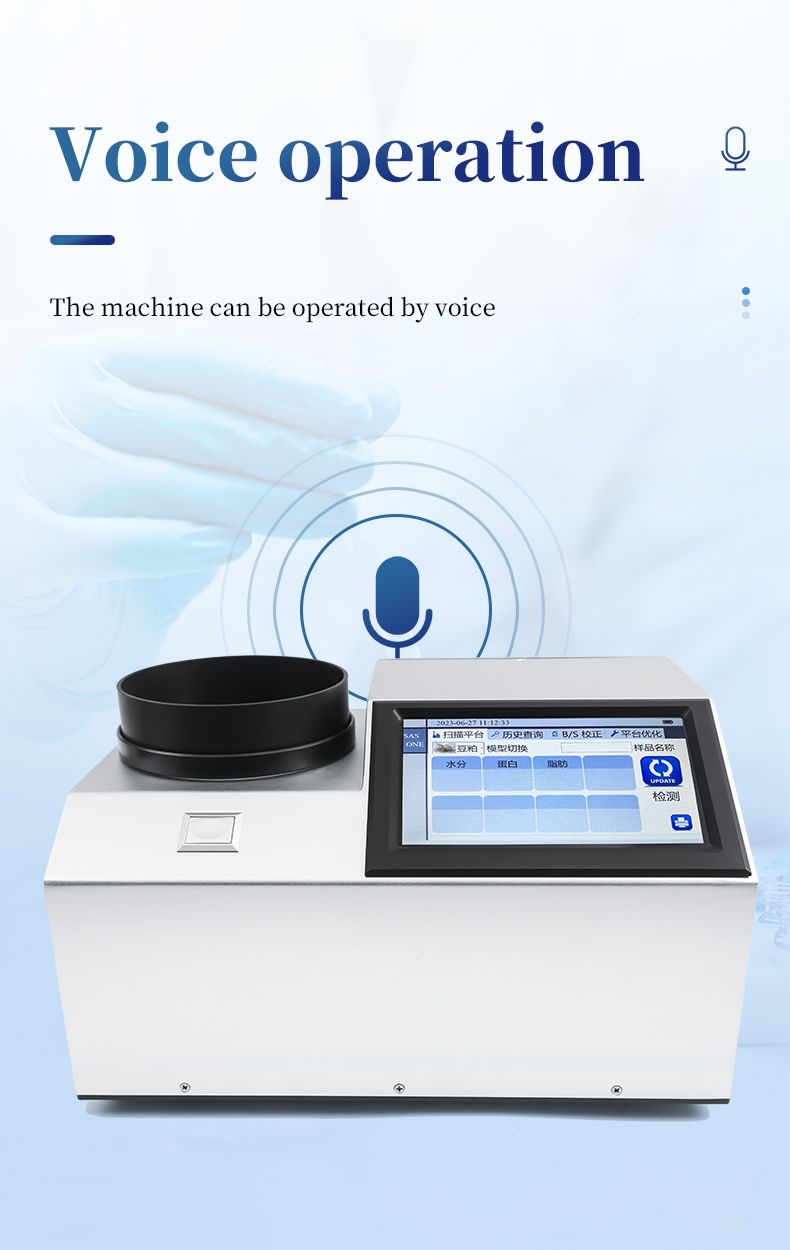

5.Voice Operation: The instrument can be operated via voice commands

6.Portable: Weighs only 6 kg, easy to carry

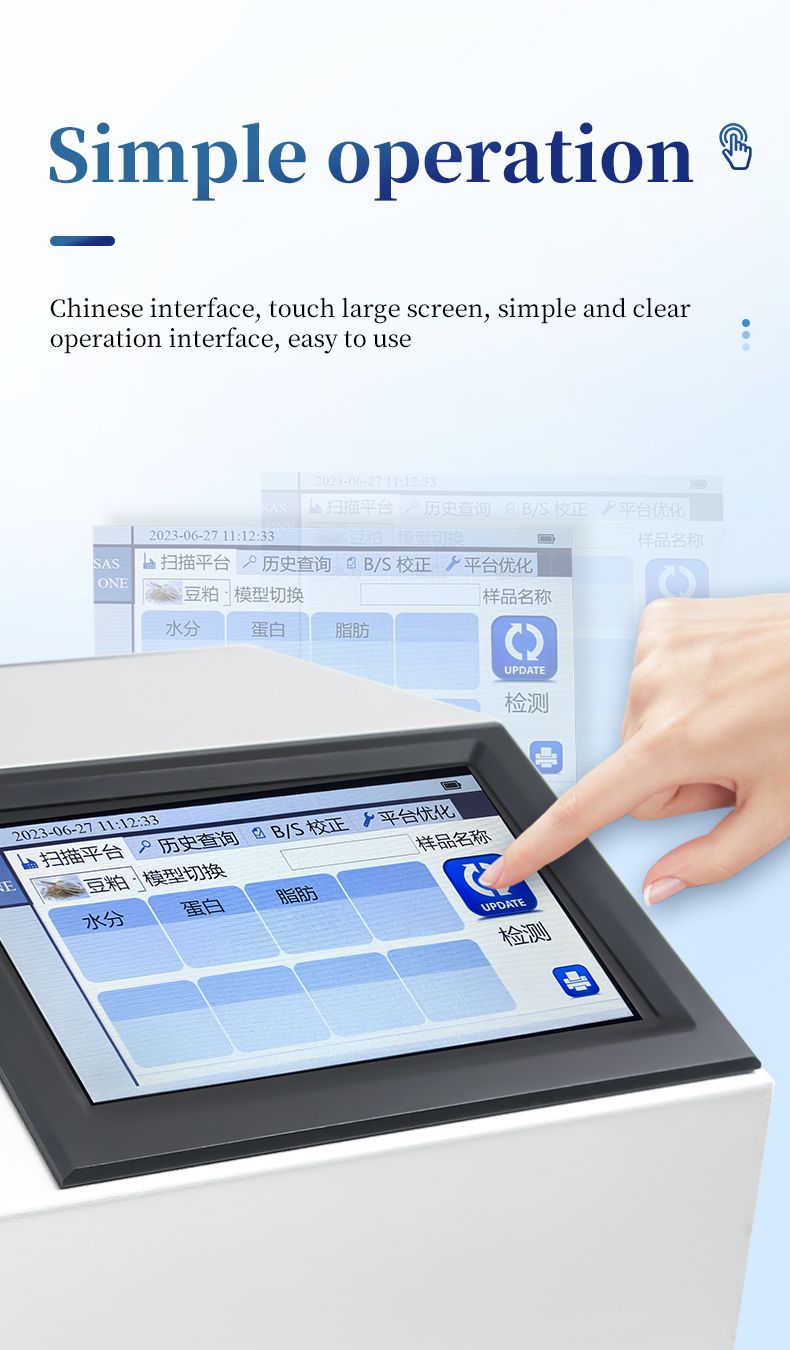

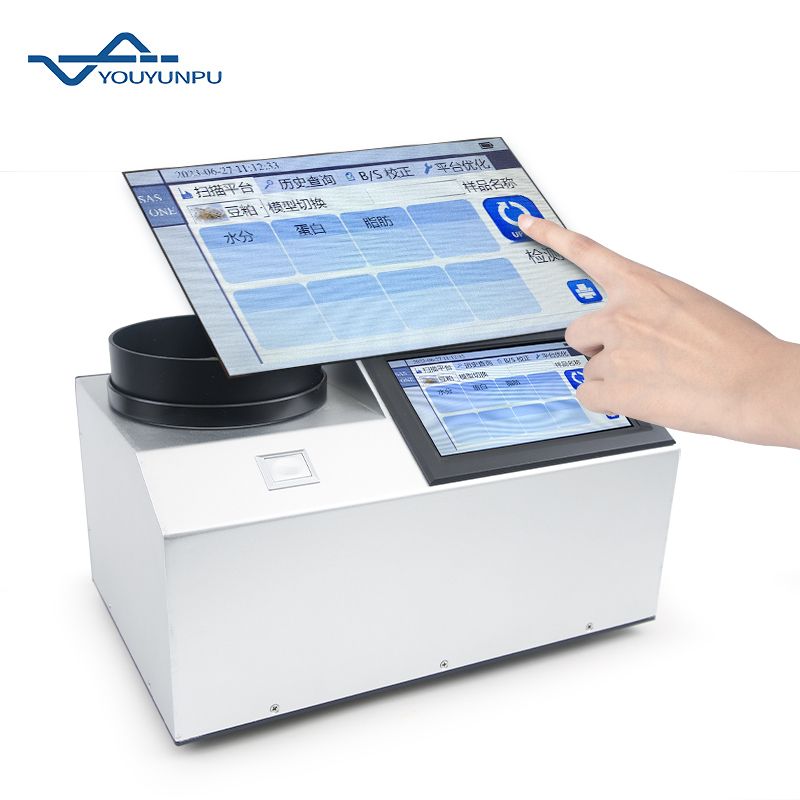

7.Easy Operation: One-button operation

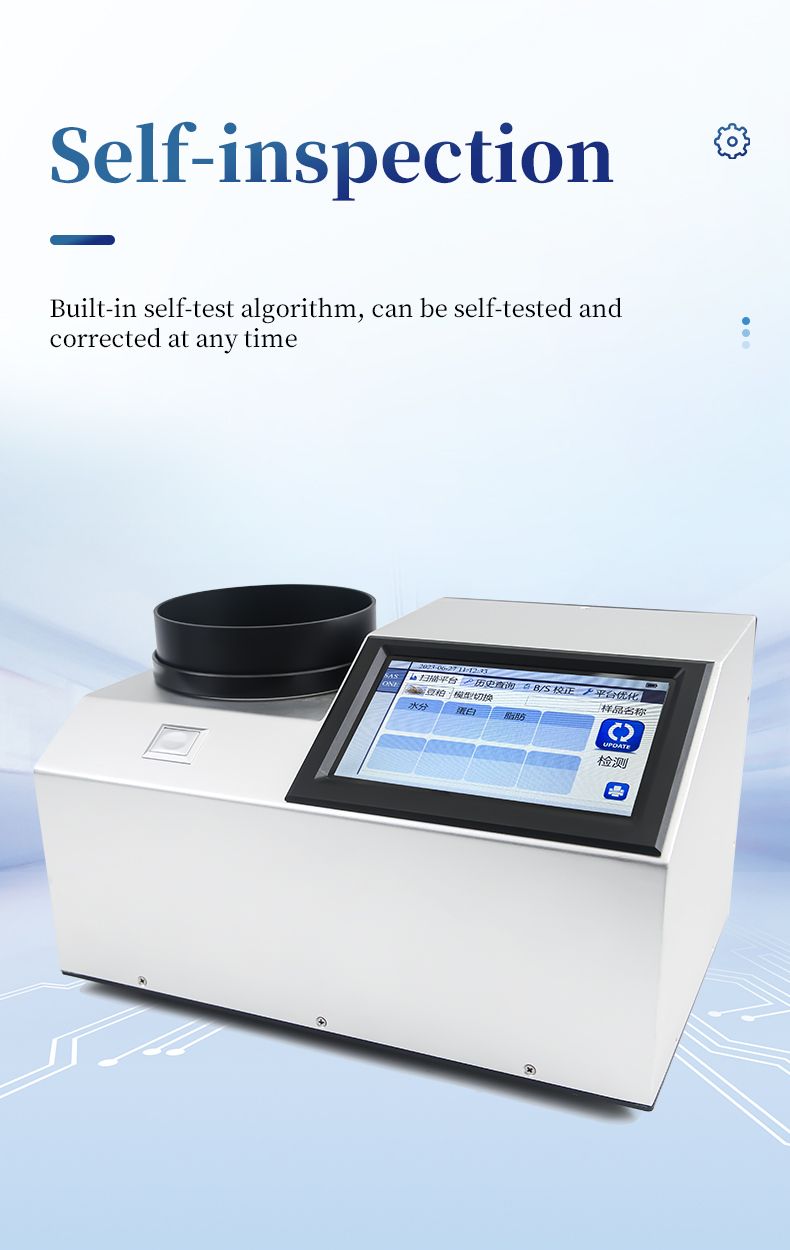

8.Self-check: Built-in self-check algorithm allows the instrument to monitor and calibrate itself at any time

9.Remote Support: Built-in remote customer service enables the manufacturer to operate the machine remotely to assist customers

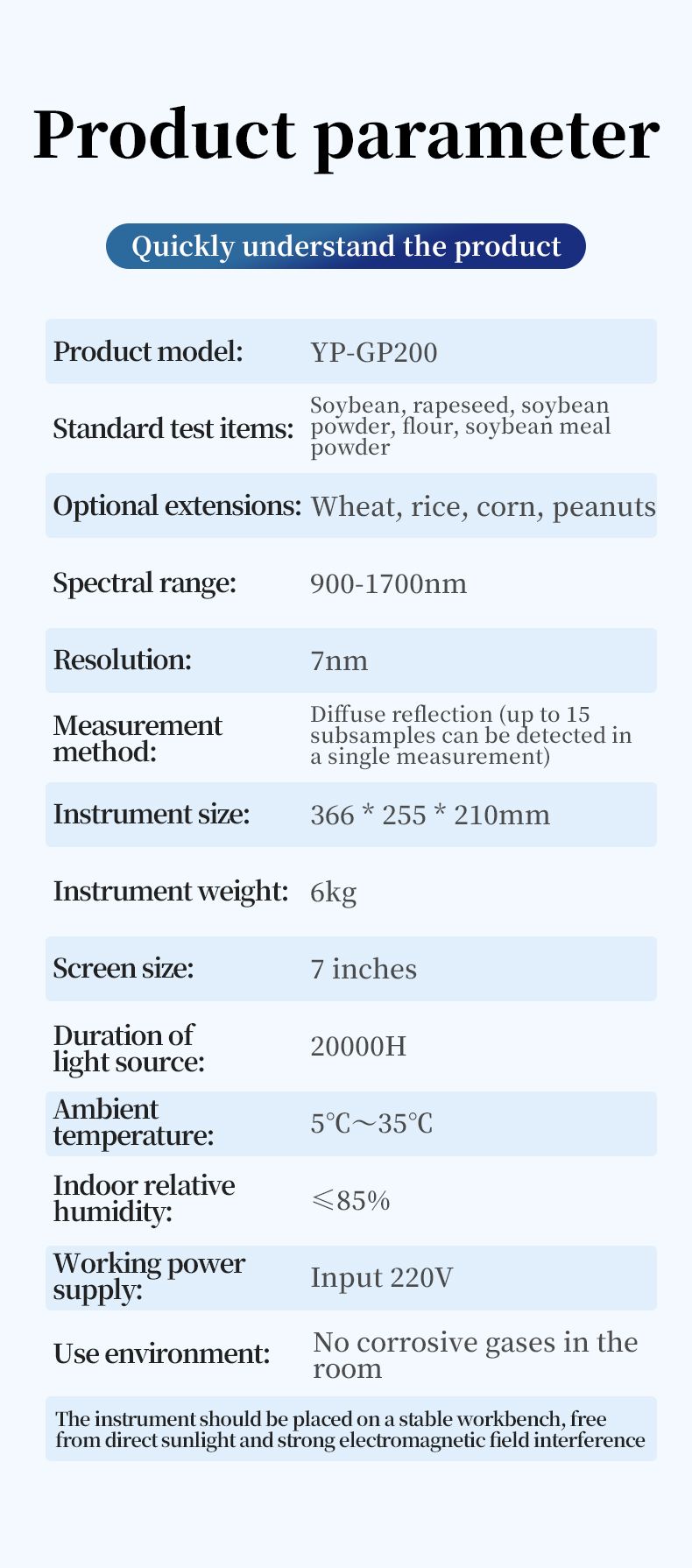

IV. Product Specifications

1.Spectral Range: 900–1700 nm

2.Resolution: 7 nm

3.Measurement Method: Diffuse reflectance; single measurement can analyze up to 15 sub-samples

4.Instrument Dimensions: 366 mm × 255 mm × 210 mm

5.Instrument Weight: 6 kg

6.Screen Size: 7 inches

7.Light Source Lifespan: 20,000 hours

8.Ambient Temperature: 5°C–35°C

9.Indoor Relative Humidity: Not exceeding 85%

10.Placement: Should be placed on a stable workbench, away from direct sunlight and strong electromagnetic interference

11.Indoor Environment: Free of corrosive gases

12.Power Supply: Input 220 V

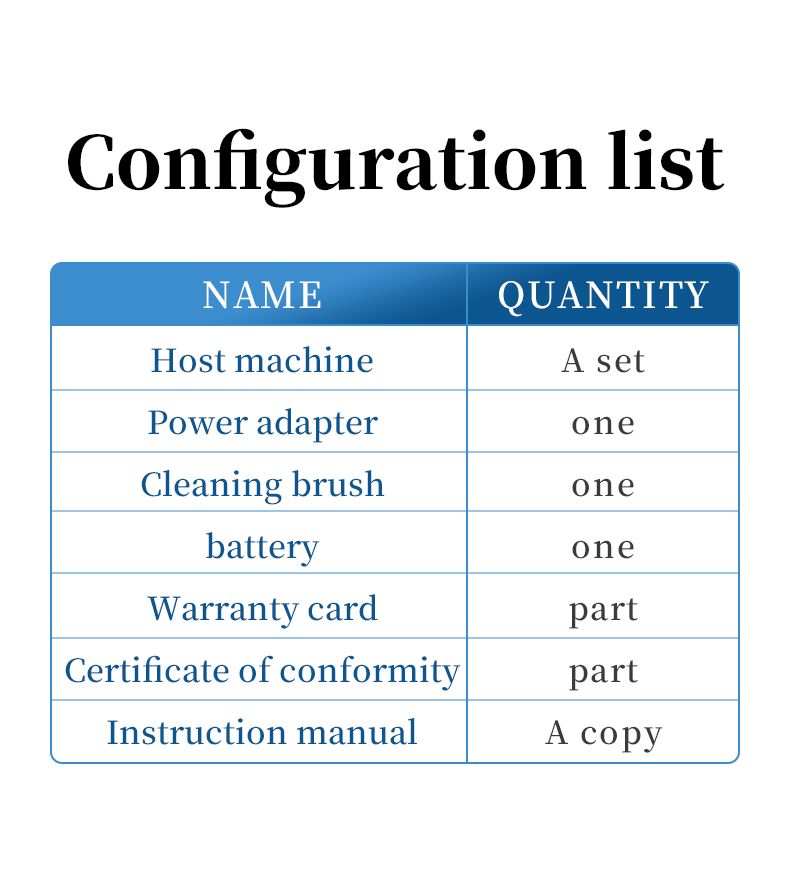

V. Configuration List

1.Main unit ×1

2.Power adapter ×1

3.Cleaning brush ×1

4.Battery ×1

5.Warranty card & certificate of conformity ×1

6.User manual ×1
